Restoration & Monitoring Methods

Cross Section and Pebble Count

Each site has four cross sections located at the beginning, the end and two in the middle evenly spaced out. On March 12,  2018, our team performed surveys and pebble counts of each cross section and longitudinally along the total 300-foot span of the creek including the 100-foot buffer located between the restored and control sites. The survey produces elevations for the data points allowing a holistic view of the shape and morphology of the creek. The pebble counts indicate the average substrate type and size that makes up the creek at the different sections. At the beginning of the restoration site, a riffle with mostly gravel substrate gives way downstream to slower pools with compacted shale.

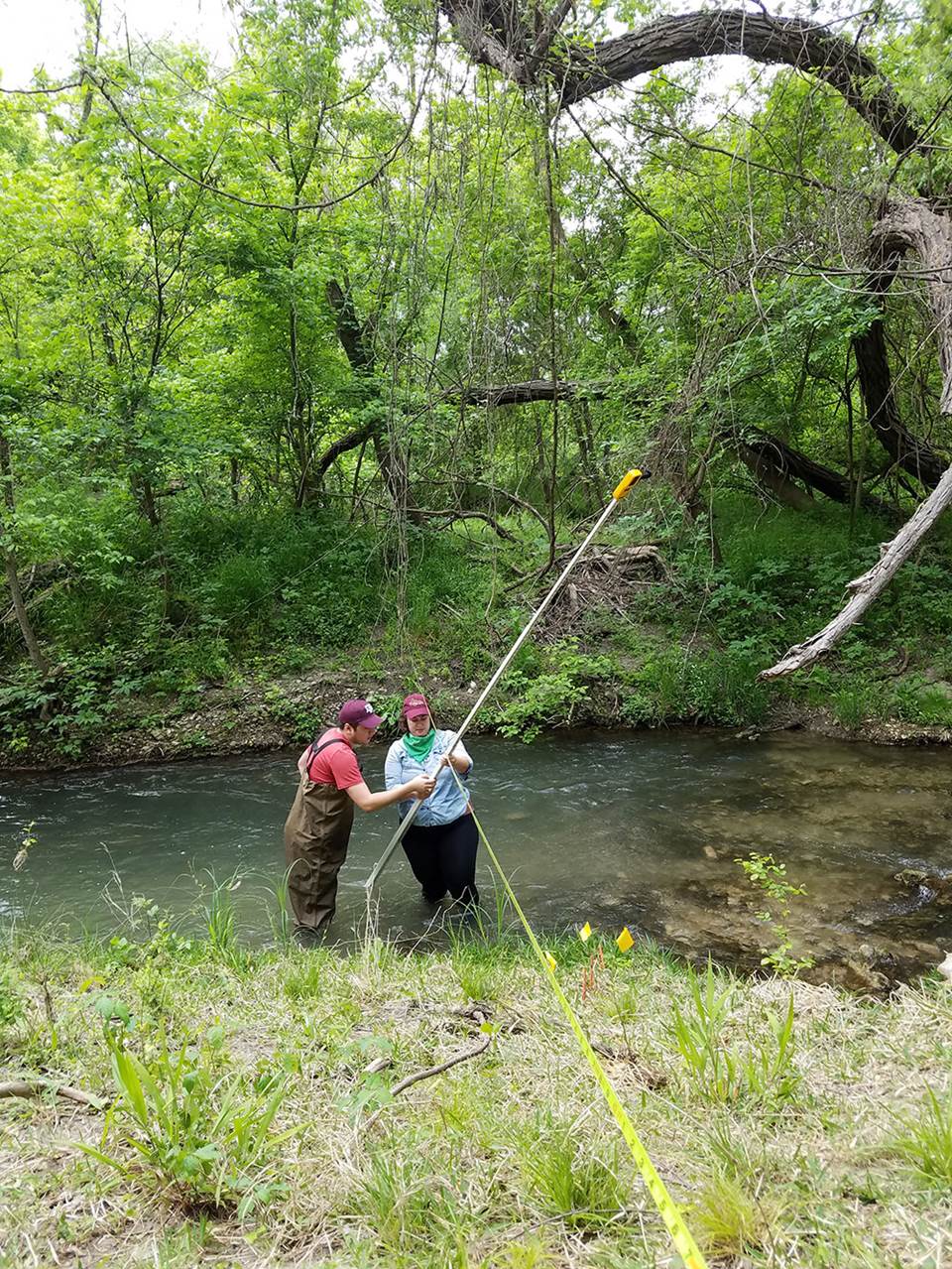

Team surveying a cross section in treatment area during second annual monitoring event
Team surveying a cross section in treatment area during second annual monitoring event

Erosion Pins

Erosion pins were also placed at each cross section along both banks at the bankfull depth, 2 feet above the bankfull depth and 4 feet above the bankfull depth. The erosion pins were approximately 3-foot long pieces of rebar that was pounded perpendicularly into the stream bank. The top 6 inches remained above the ground and were painted florescent orange. Quarterly, the erosion pins will be measured to determine the rate of erosion occurring along the stream bank.

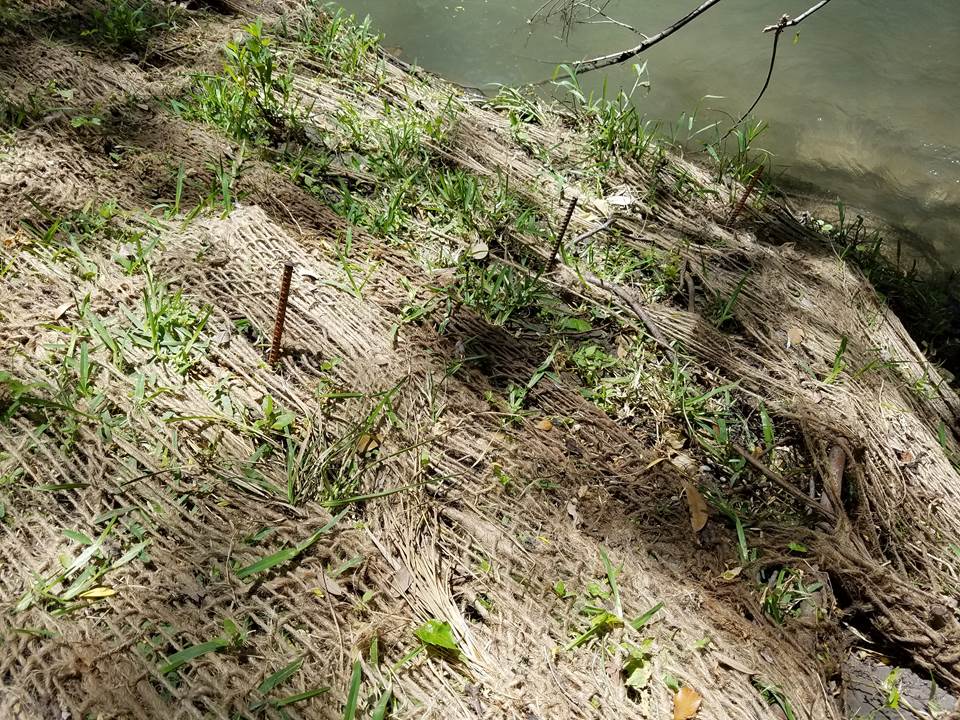

Three installed erosion pins on one bankside of a cross section
Three installed erosion pins on one bankside of a cross section

Managing Invasives

TWRI worked with Texas Parks and Wildlife Department and the Guadalupe-Blanco River Authority to receive authorization to spray invasive elephant ear. On July 13, 2018 the TWRI team sprayed for elephant ears within the project using 1 percent Clearcast (Amazamox) and 0.8 percent Dyne-Amic solution.

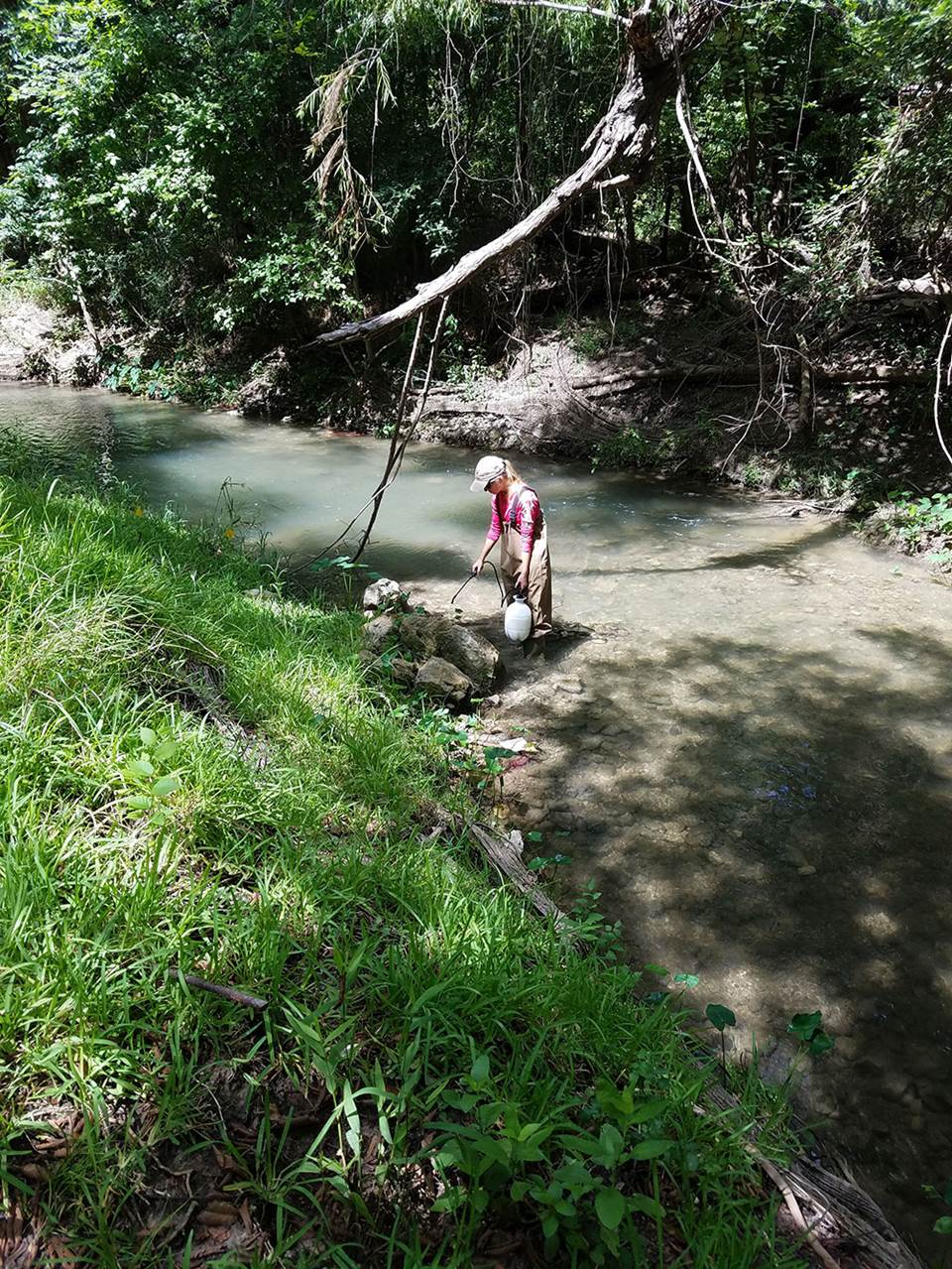

Spraying elephant ears to help with removal
Spraying elephant ears to help with removal

Quarterly Measurements

The team takes quarterly measurements every three months to monitor erosion along the site. It also collects Bank Erosion Hazard Index (BEHI), erosion pins, and water quality samples during these trips.

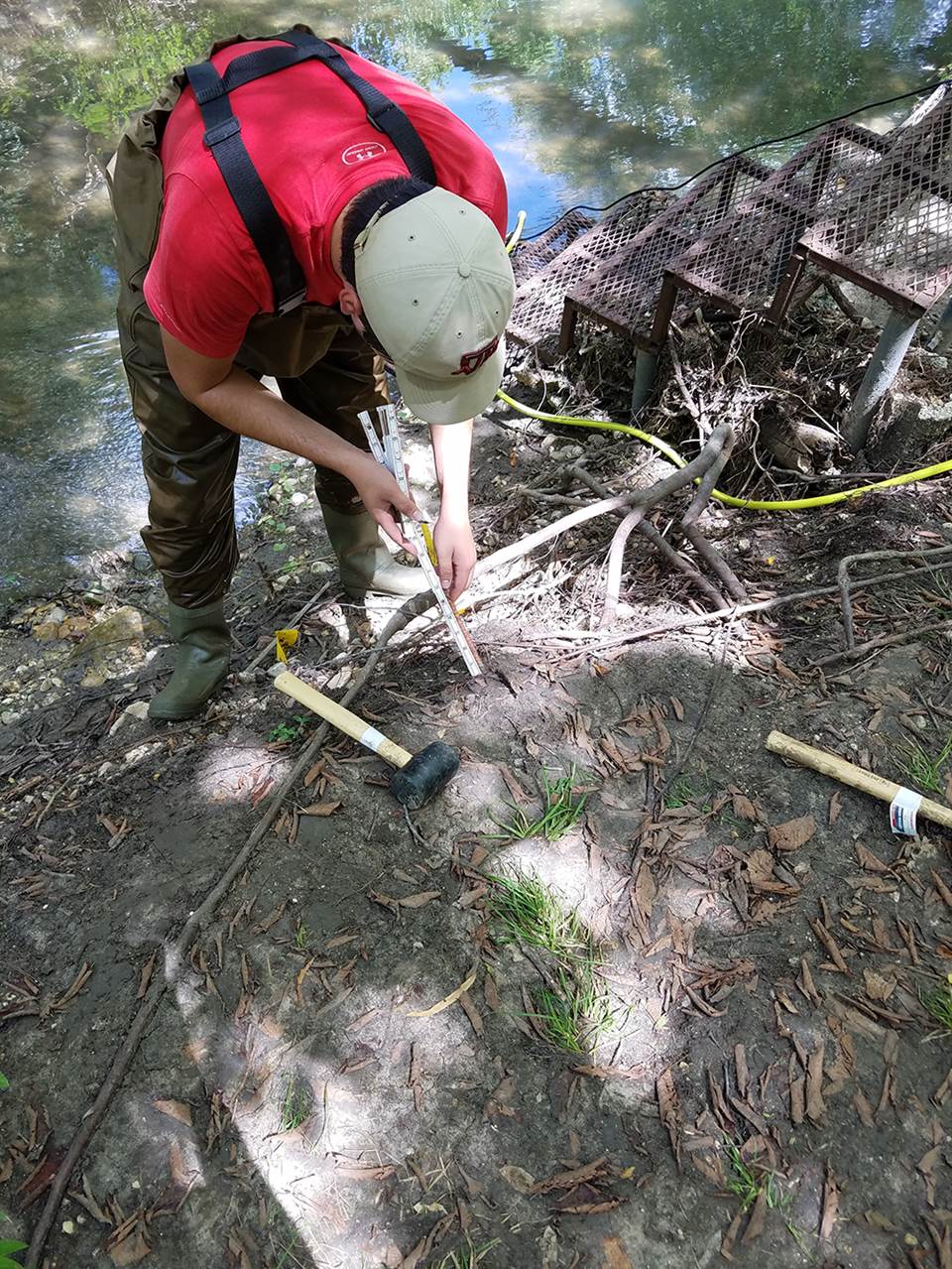

Measuring erosion pins during a quarterly monitoring trip
Measuring erosion pins during a quarterly monitoring trip

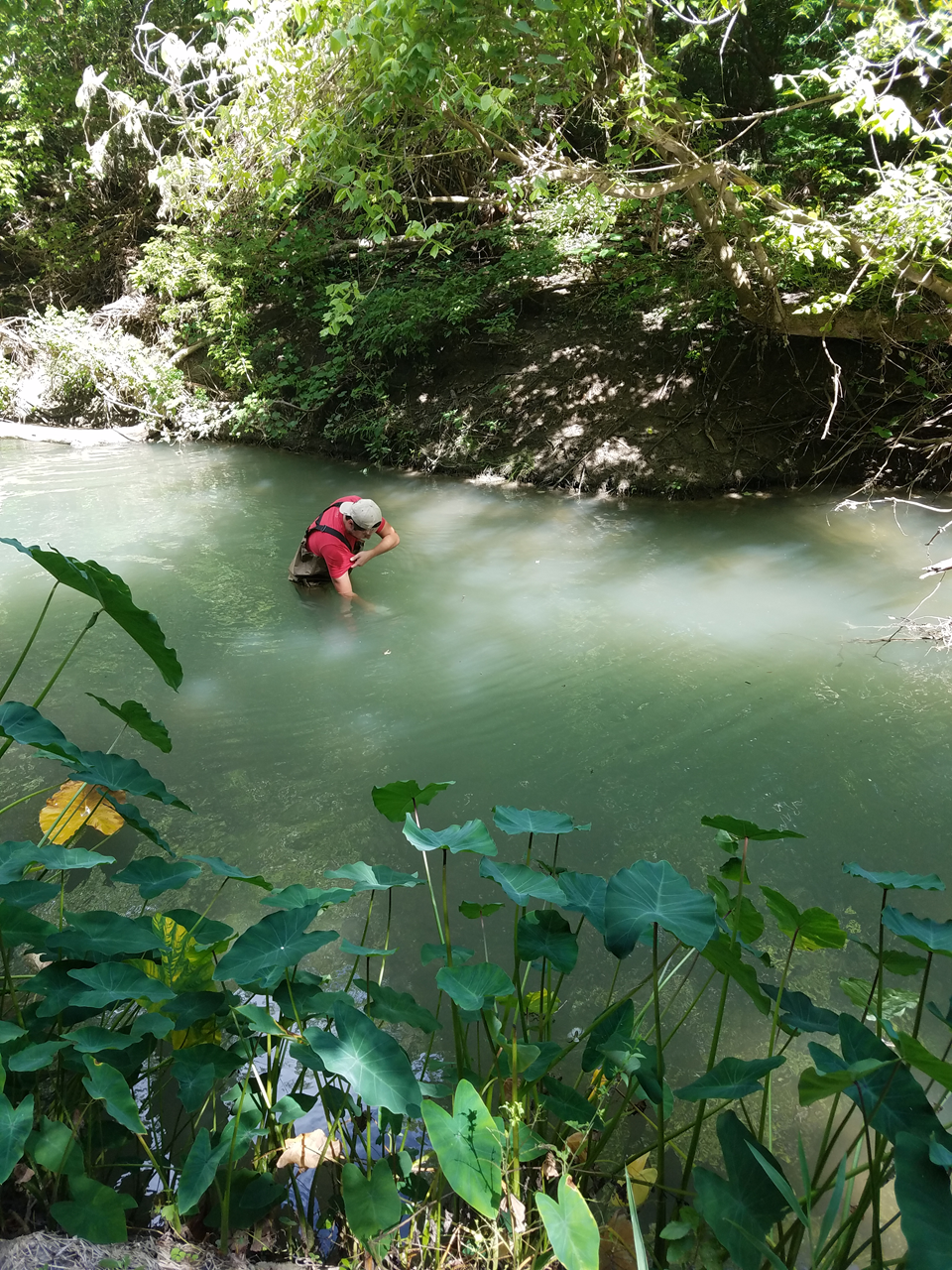

Collecting water grab samples.
Collecting water grab samples.
